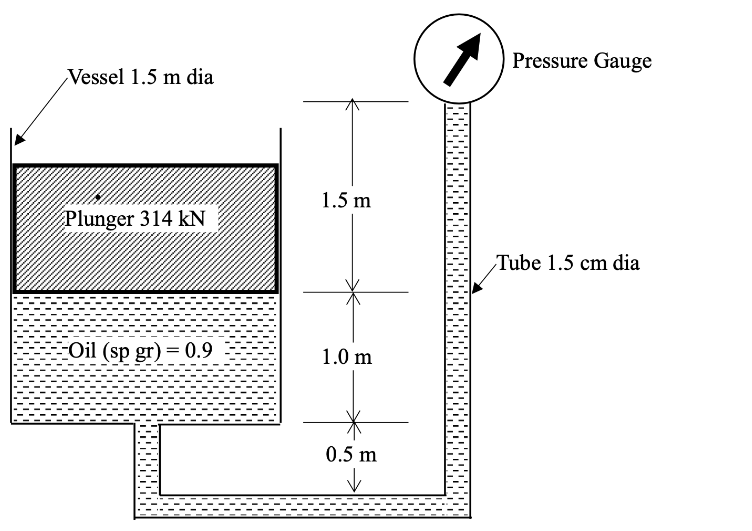

A plunger weighing $314 \mathrm{kN}$ is balanced in a cylindrical vessel of diameter $1.5 \mathrm{~m}$ and filled with an oil (specific gravity 0.9 ) as shown in the following figure (not to the scale).



If a pressure gauge is connected with the vessel using $1.5 \mathrm{~cm}$ diameter tube, the reading of the gauge will be (in $\mathrm{kPa}$, rounded off to two decimal places).
