GATE ES 2024 | Question: 46

Question

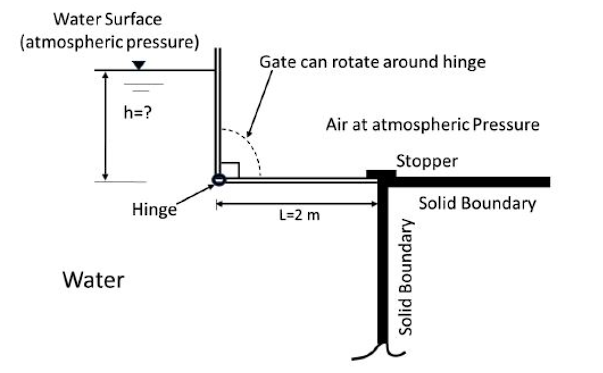

With reference to the gate shown in the figure, the gate will start opening automatically when the water level ' $h$ ' above the hinge is __________ $\mathrm{m}$ $\text{(rounded off to 2 decimal places)}$
